Dojo oppure
Dojo Ferrite Motor · Low Bass · FEA optimized · Fat Foam Surround · Paper Cone · Voice coil winding made with Flat CCA · Ferrite magnet 370oz · Aluminium Frame · Designed for the low frequencies reproduction
Specifiche Tecniche Impedenza: 1+1/2+2 Ohm Diametro bobina: 100 mm Magnete: Ferrite Cestello: Alluminio Bobina: 8 layer CCA a sezione piatta TECHNICAL SPECIFICATIONS Nominal impedance: 1+1/2+2 Ohm Voice coil Diameter: 100 mm Magnet: Ferrite Frame: Aluminum Voice coil material: 8 layer Flat CCA Download DATA Sheet

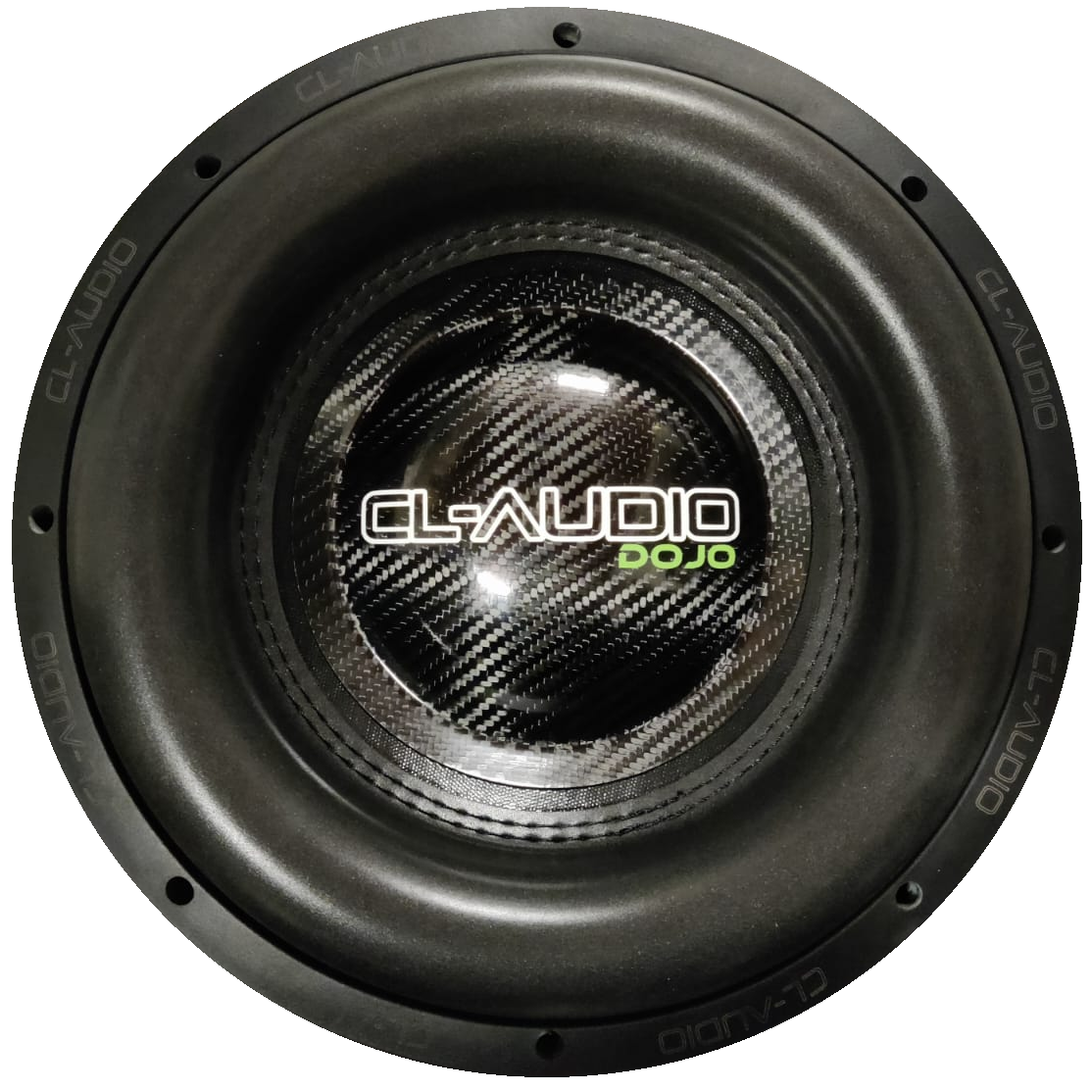

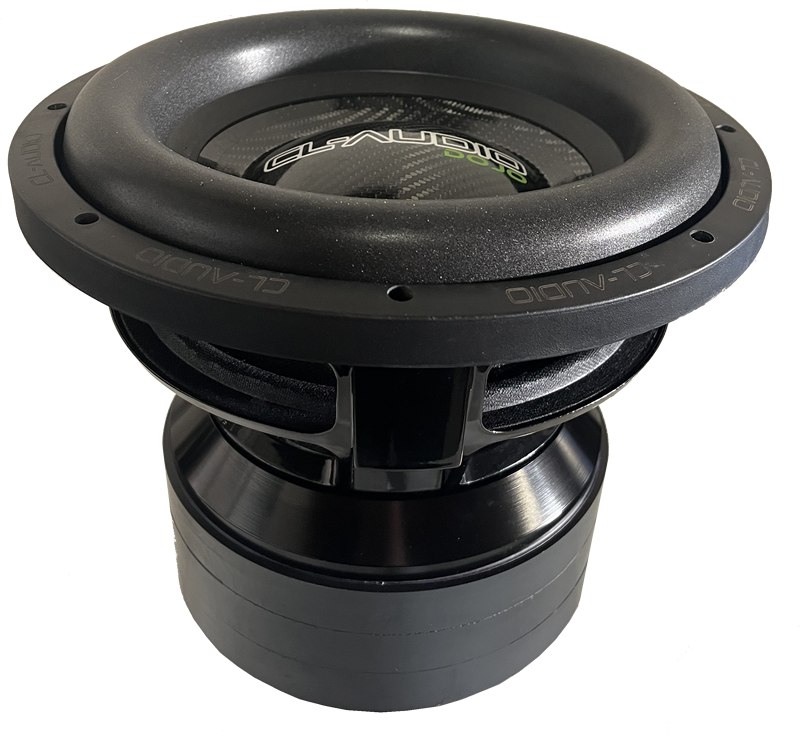

Dojo 10"/12"/15"/18"
Specifiche di installazione MOUNTING SPECIFICATION Diametro esterno/Overall diameter: 265/314/392/463 mm Altezza totale/Total depth: 266/295/340/365 mm Diametro di montaggio/Mounting diameter: 236/283/358/428 mm Profondità di montaggio/Mounting depth: 233/251/285/312 mm Peso/Weight: ~31 kg Download DATA Sheet
