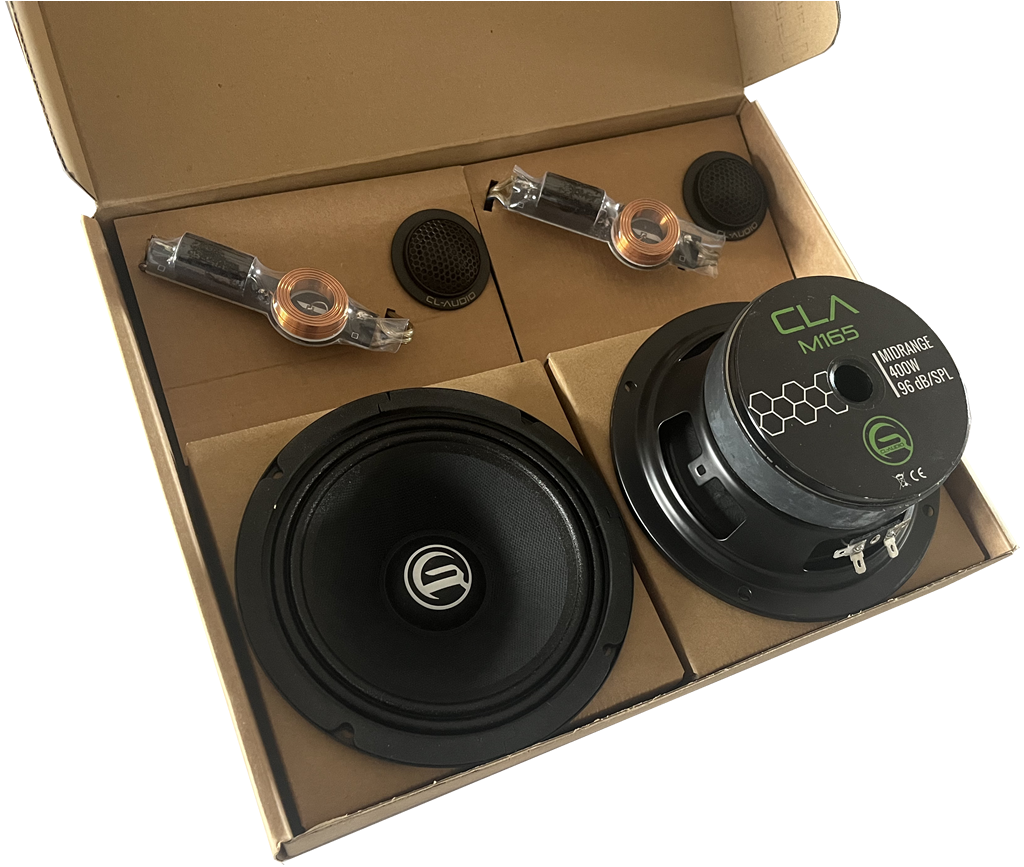

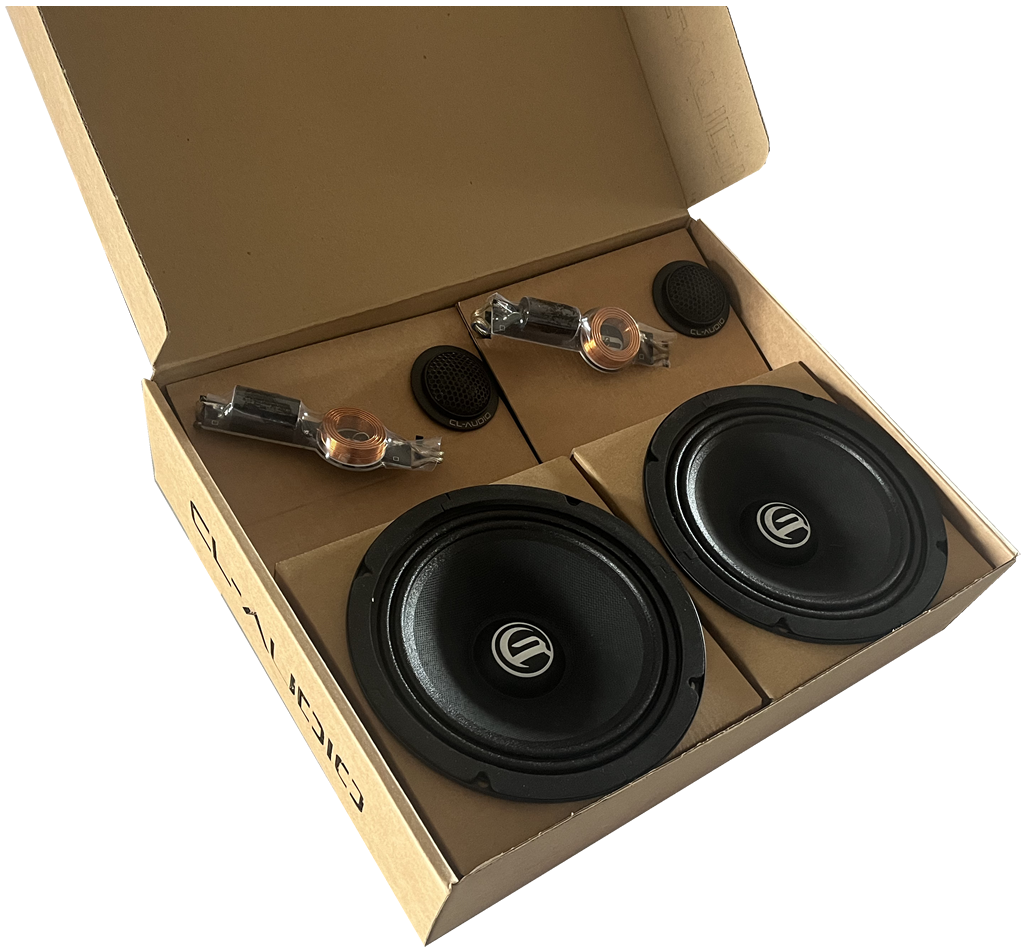

KitDueVie
· M165 MidRange
· MiniTW25
· High-Pass CL Filter for tweeter f-3dB=6.8 kHz, 12 dB/oct
· 4.7 uF Polypropylene capacitor
· 0.33 mH Jantzen Inductor
Specifiche Tecniche Mini TW25
Impedenza: 4 Ohm
Gamma di frequenza: 2 - 24k kHz
Potenza RMS: 30 W
Magnete: Neodimio
TECHNICAL SPECIFICATIONS
Nominal Impedance: 4 Ohm
Frequency Bandwidth: 2 - 24k kHz
RMS Power: 30 W
Magnet Material: Neodymium
Specifiche Tecniche M165
Specifiche Tecniche
Impedenza: 4 Ohm
Sensibilità: 96 dB 1W @ 1m
Gamma di frequenza: 110 - 8k Hz
Diametro bobina: 38 mm
Magnete: Ferrite
Bobina: Rame
Cono: Carta
TECHNICAL SPECIFICATIONS
Nominal impedance: 4 Ohm
Sensitivity: 96 dB 1W @ 1m
Frequency range: 110 - 8k Hz
Voice coil diameter: 1,5"
Magnet: Ferrite
Winding material: Copper
Cone material: Paper
